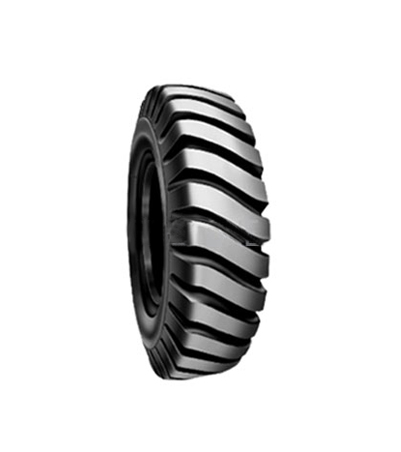

MRH 1030
| SIZE | PATTERN | PLY RATING | RIM WIDTH | INFLATED DIMENSIONS +/-2% | LOAD CAPACITY(KG) | I.P(BAR) | |
|---|---|---|---|---|---|---|---|
| OD(MM) | CSW(MM) | ||||||
| 17.5-25 | 1030 | 16PR | 14.00 | 1348 | 445 |
7300 @ 10km/h 4250 @ 50km/h |
4.75 |
| 23.5-25 | 1030 | 20PR | 19.5/2.5 | 1617 | 597 | 7300 @ 10km/h | 3.00 |
| 14.00-24 | 1030 | 24PR | 10.00 | 1368 | 375 |
9500 @ 10km/h 5150 @ 50km/h |
8.50 5.75 |
| 14.00-25 | 1030 | 24PR | 10.00 | 1368 | 375 |
9500 @ 10km/h 5150 @ 50km/h |
8.50 5.75 |
| 20.5-25 | 1030 | 20PR | 17.00/2.0 | 1493 | 521 |
Speed Symbol-B 6000 |
3.25 |
MRH 1031
| SIZE | PATTERN | PLY RATING | RIM WIDTH | INFLATED DIMENSIONS +/-2% | LOAD CAPACITY(KG) | I.P(BAR) | |
|---|---|---|---|---|---|---|---|
| OD(MM) | CSW(MM) | ||||||
| 12.00-24 | 1031 | 20PR | 8.5/1.3 | 1247 | 315 |
6900 @ 10km/h 3750 @ 50km/h |
8.25 5.50 |
| 13.00-24 | 1031 | 20PR | 10.00/1.5 | 1301 | 351 |
7200 @ 10km/h 4050 @ 50km/h |
8.50 3.00 |
