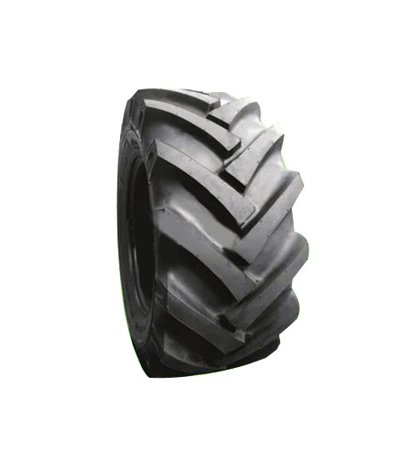

/Agricultural-Implement-Tyres-(Traction)-130.jpg)
MRH 1021
| SIZE | PATTERN | PLY RATING | RIM WIDTH | INFLATED DIMENSIONS +/-2% | LOAD CAPACITY(KG) | I.P(BAR) | |
|---|---|---|---|---|---|---|---|
| OD(MM) | CSW(MM) | ||||||
| 6.50/80-12 | 1021 | 6PR | 5.00 | 588 | 163 | Free Rolling 650 Drive Wheel 450 | 3.60 |

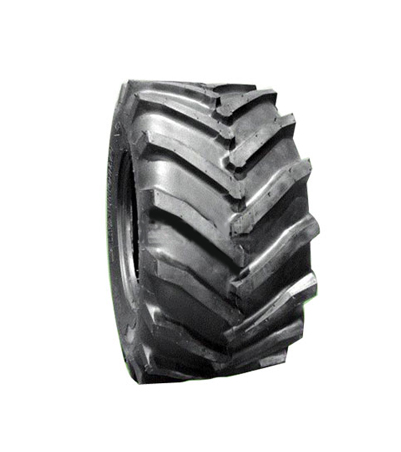

/Agricultural-Implement-Tyres-(Traction)-131.jpg)
MRH 1022
| SIZE | PATTERN | PLY RATING | RIM WIDTH | INFLATED DIMENSIONS +/-2% | LOAD CAPACITY(KG) | I.P(BAR) | |
|---|---|---|---|---|---|---|---|
| OD(MM) | CSW(MM) | ||||||
| 10.0/75-15.3 | 1022 | 12PR | 9.00 | 780 | 264 | Free Rolling 1700 Drive Wheel 1180 | 4.70 |
| 11.5/80-15.3 | 1022 | 12PR | 9.00 | 867 | 290 | Free Rolling 2180 Drive Wheel 1550 | 4.10 |

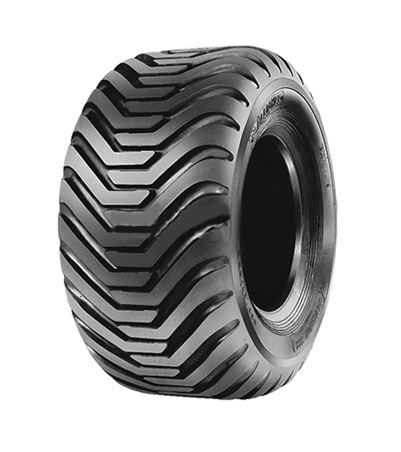

/Agricultural-Implement-Tyres-(Traction)-132.jpg)
MRH 1023
| SIZE | PATTERN | PLY RATING | RIM WIDTH | INFLATED DIMENSIONS +/-2% | LOAD CAPACITY(KG) | I.P(BAR) | |
|---|---|---|---|---|---|---|---|
| OD(MM) | CSW(MM) | 400/60-15.5 | 1023 | 8PR 10PR 12PR 14PR | 13.00 | 874 | 400 | Free Rolling 2520 Drive Wheel 1900 | 2.40 |
